Cutting edge retinal
imaging systems
EYE CARE
Canon’s extensive line of ophthalmic diagnostic equipment spans cutting-edge digital retinal imaging systems, optical coherence tomography systems, and tonometers, as well as associated intuitive control software to enhance patient care.

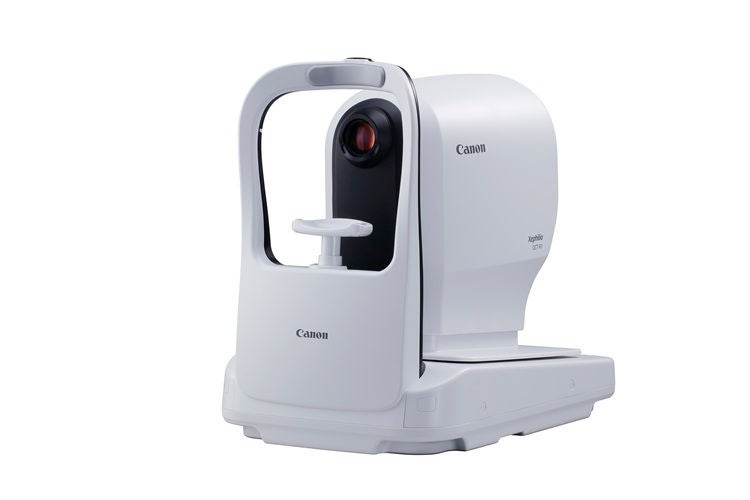

Xephilio OCT-R1
The Canon Xephilio OCT-R1 is a state-of-the-art ophthalmic device that integrates Spectral Domain Optical Coherence Tomography (SD-OCT) with high-resolution non-mydriatic retinal imaging. Designed for efficiency and patient comfort, it is particularly suited for high-volume eye care practices and screening programs.Key features:
- Fully Automated Operation: initiates comprehensive eye-examinations with a single touch, the device automatically aligns, tracks and captures images of both eyes sequentially
- Sequential protocols: offers fully automated examination presets with various consecutive scanning-types along with intuitive audio guidance in multiple languages
- High-Resolution Imaging: achieves wide-field scans up to 14.7 × 13.4 mm with 32.5 MP resolution, the integrated EOS digital retinal camera ensures true-color imaging enhanced by Canon’s digital filters and opacity suppression technology
- Advanced OCT Angiography: incorporates optional ANGIO Expert software utilizing AI-driven Intelligent Denoise to produce clear noise-reduced OCTA images from a single acquisition, ideal for visualizing retinal microvasculature and peripheral pathologies
- Ergonomic Design: features a truly compact design with a small footprint, enhancing patient comfort and fitting seamlessly into various clinical settings. It received multiple international design accolades including the 2024 Red Dot Design Award, Good Design Award 2023 and iF Design Award 2024 being praised for its user-centric and aesthetically pleasing design
- User-Friendly Interface: operates via a touchscreen with intuitive icons and customizable examination-sets, the system streamlines workflows and reduces training time, suitable for routine eye exams such as glaucoma & diabetic-retinopathy screening and age-related macular degeneration monitoring

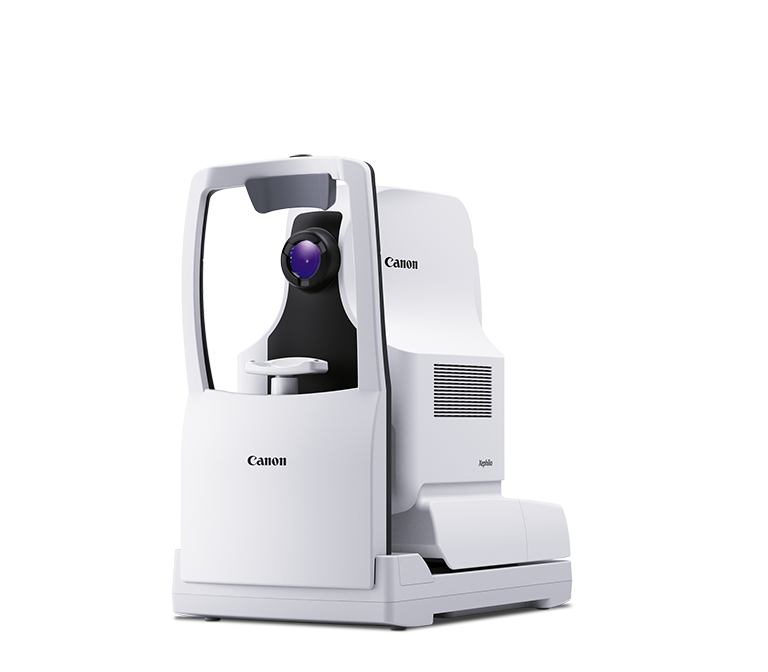

XEPHILIO OCT-A1
Xephilio OCT-A1 the latest Canon Medical High Resolution 3um optical coherence tomography for outstanding performance and exceptional ease of use you can rely on every day. High definition imaging quality and a host of automated features optimize and simplify your examinations with fast acquisition times while increasing your patients efficiency and comfort.

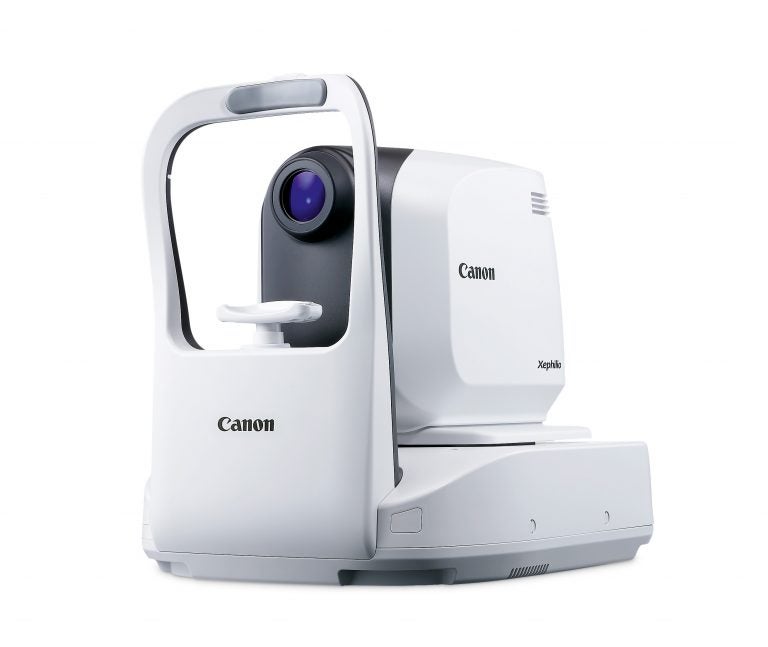

XEPHILIO OCT-S1
Xephilio OCT-S1 the latest Canon Medical Wide field Swept Source technology allowing to capture wide-field images of up to 23 mm in a single scan with a 5.3 mm depth. 100KHz scan speed for less motion artefacts and high resolution OCT Angiography. Xephilio OCT-S1 allows you to see deeper, wider and in more detail from the vitreous to the sclera all in few seconds.

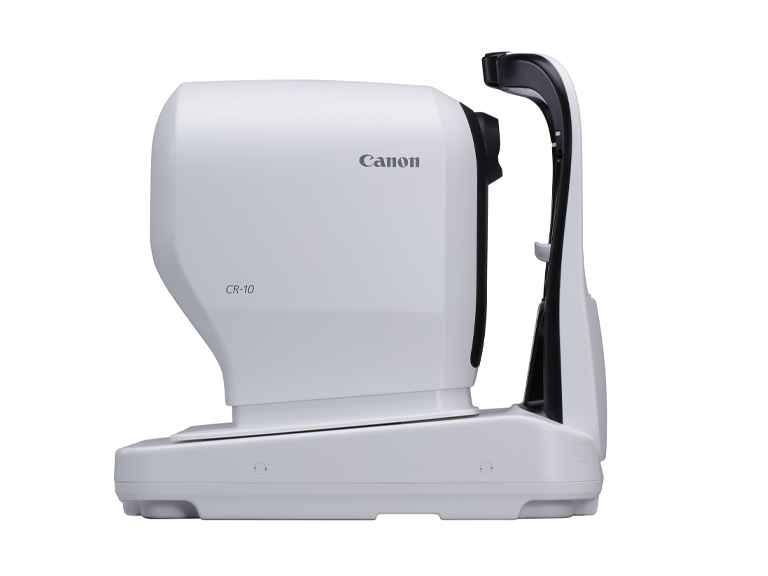

CR-10
The Canon CR-10 digital retinal camera is a new generation of technology designed for effortless retinal imaging. Key features:- High Resolution Imaging: Equipped with Canon’s high-resolution imaging technology, the CR-10 captures detailed fundus images, allowing eye care professionals to make accurate diagnoses.
- User-Friendly Design: The CR-10 boasts a compact and ergonomic design, making it suitable for any space. Whether it’s placed in a corner or against a wall, this camera fits seamlessly into your clinical setup.
- Automated Functionality: The camera offers one-touch operation for effortless examination. Features like auto focus with next-generation technology streamline the imaging process, enhancing clinical workflow efficiencies.
- Reduced Flare and Shadow: Thanks to the integration of the latest Canon EOS camera, the CR-10 produces color fundus images with minimal flare and shadow, ensuring clearer and more accurate clinical assessments.

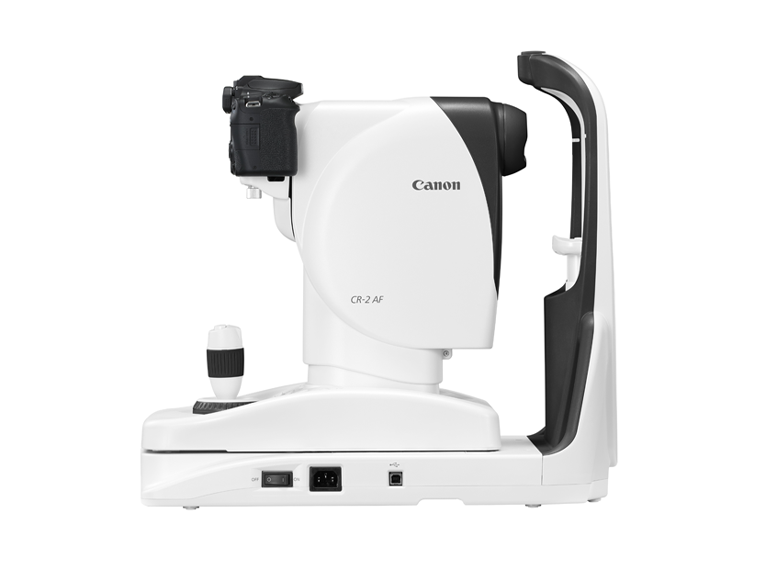

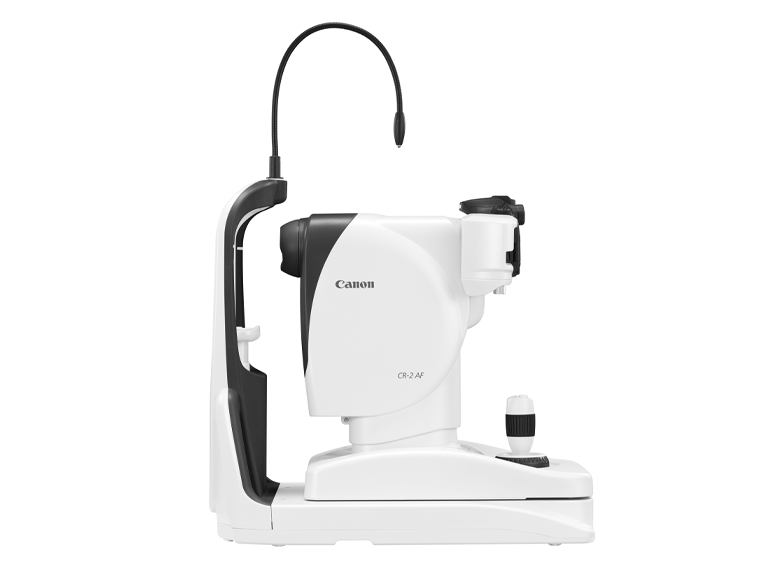

CR-2 AF
The CR-2 AF is a Non Mydriatic Camera with extensive auto functions. Taking images with a Canon retinal camera has never been easier! Canon’s own EOS digital camera technology, with its renowned image processing capabilities, has been adapted exclusively for Canon retinal cameras to offer optimal retinal imaging.
CR-2 Plus AF
The CR-2 Plus AF is an Auto focusing Non Mydriatic Camera with Fundus AutoFluorescence (FAF). The FAF photography mode will provide information on changes of the retina that can’t be made visible with standard colour photography. It is equipped with a unique dedicated EOS digital camera for the highest image quality.

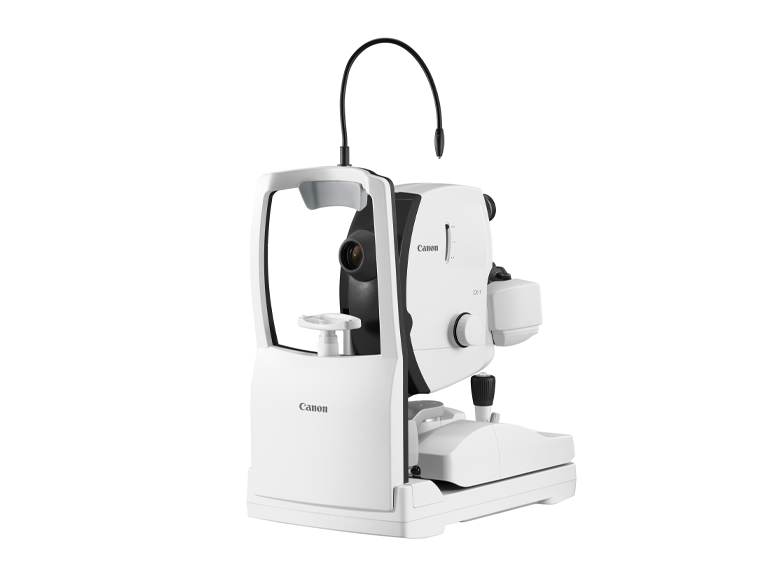

CX-1
The CX-1 is a Mydriatic Retinal Camera with full Non-Mydriatic functionality. Besides color photography, the CX-1 is equipped with high quality optical filters for FLUO, Red Free, Cobalt and standard even with FAF photography.

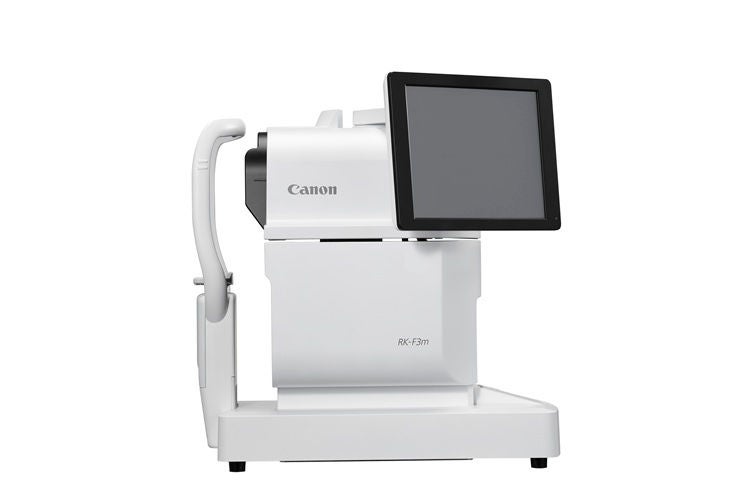

RK-F3m: Precision Refraction Made Possible
Fast & Accurate Objective RefractionExperience precise, objective refraction in under 20 seconds with fully automated alignment, focus, and image capture. Even for smaller pupils (Ø 2.0mm), the RK-F3m ensures reliable measurement, optimizing subjective refraction assessments with confidence. Its compact design, 180° rotating, and 40° tiltable screen allow for effortless installation and a flexible workspace, adapting seamlessly to any environment.
Advanced Ocular Assessment for Greater Expertise
Enhance your expertise in contactology with automatic peripheral keratometry and white-to-white measurement, enabling precise corneal analysis for personalized patient prescriptions. With retro-illumination imaging, gain deeper insights into media opacity, ensuring comprehensive ocular evaluations.
Refraction Assessment in Real-Life Conditions
Understand visual variations across day and night light conditions with scotopic, mesopic, and photopic environment assessments. Evaluate monocular accommodation from infinity to 20 cm, helping patients grasp the natural evolution of accommodative capacity and night vision changes. With a holistic approach to refraction, better understand patient needs and guide them toward personalized solutions for optimal visual clarity.

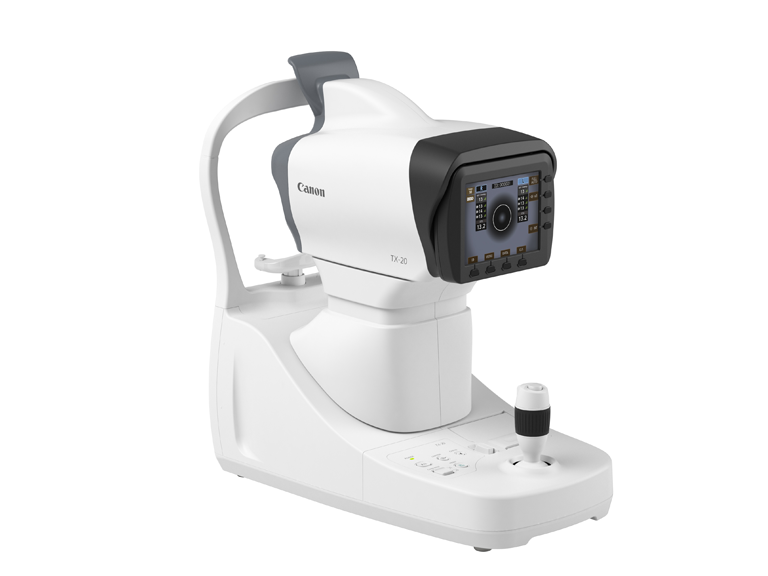

TX-20
The Canon TX-20 Full Auto Tonometer measures the Intraocular Pressure (IOP) with an extremely soft air puff. It has an advanced intelligent 3D fully automated operation that makes operating the instrument extremely simple; just press the button.

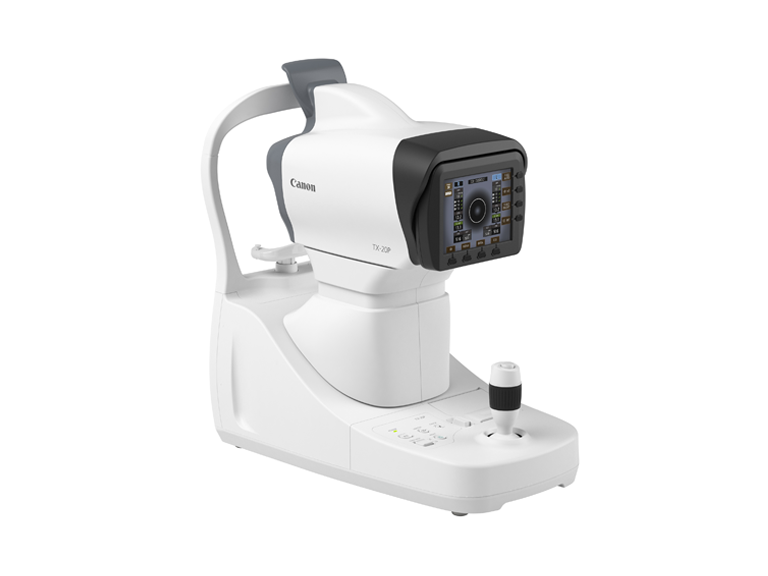

TX-20P
Two in one, tonometer and pachymeter in a single instrument.Information about the actual corneal thickness is important because without, it can mask accurate readings of IOP and delay diagnosis of glaucoma. Unless taken into account, thicker corneas contribute to overestimation of IOP values and thinner corneas to underestimation.
Due to medical device regulatory reasons, not all products/services displayed on this Canon Medical Systems webpage are available in all countries or markets. Future availability of the products/service cannot also be guaranteed. Don't hesitate to contact your local Canon Medical Systems representative for further details.
