Advanced Edge Enhancement

Improved visualization of tubes, catheters and bone details

Three different types of Advanced Edge Enhancement are available

Catheter:

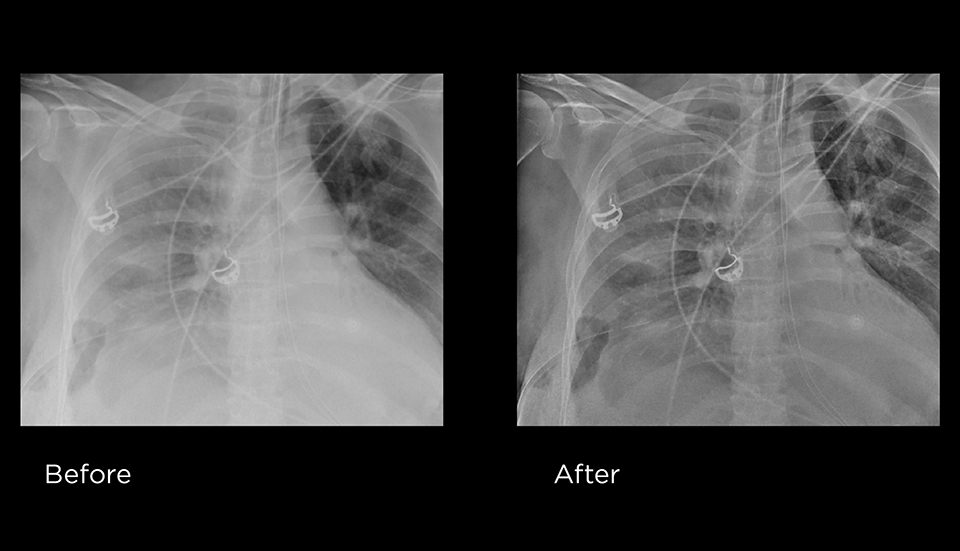

This type is to enhance the display of catheters, soft tissues and bone tissues. Select this option when you want to make catheters more visible in mainly adults’ chest or abdomen, or when you would like more visibility of soft tissue or bone tissues such as cervical spine, extremities and pelvis.


Small Structure:

This type is to enhance the display of small structures in the body. Select this option when you want to make catheters used mainly for children or infants more visible.


Bone:

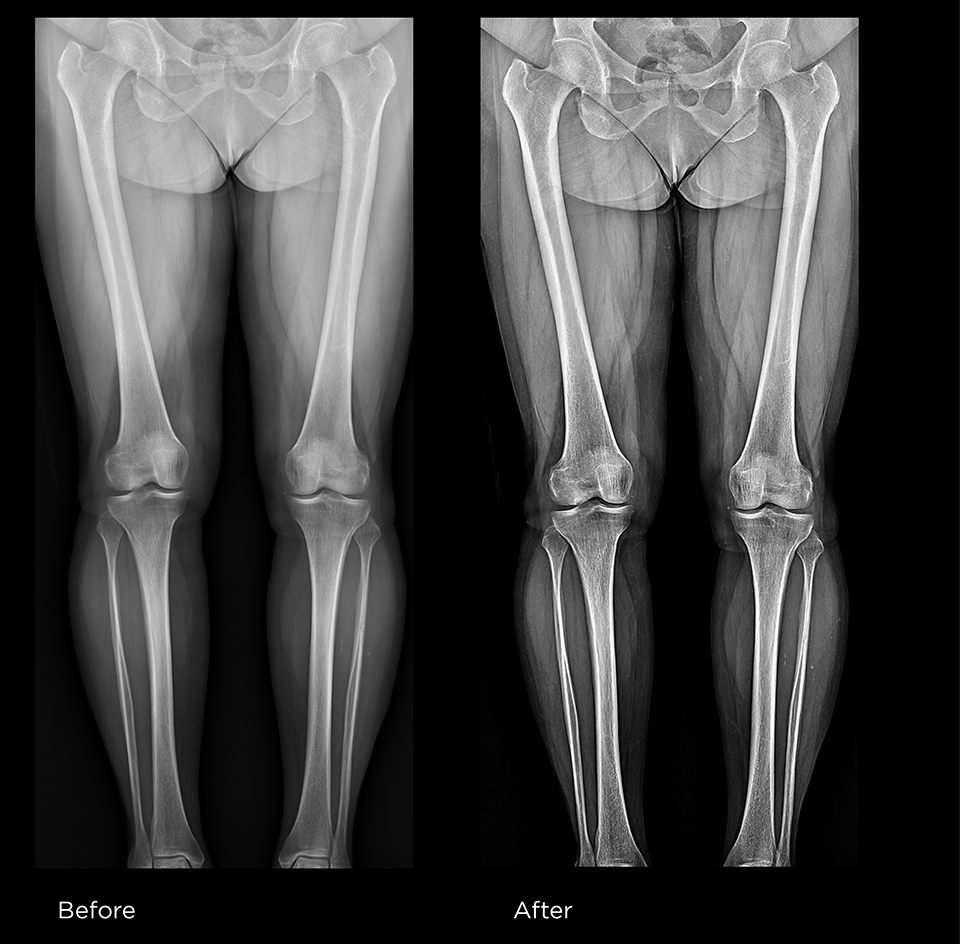

This type is to enhance the edge of bone tissues. Select this option when you want to make bone tissues in full spinal images or full leg images, mainly acquired with long-length imaging, more visible.

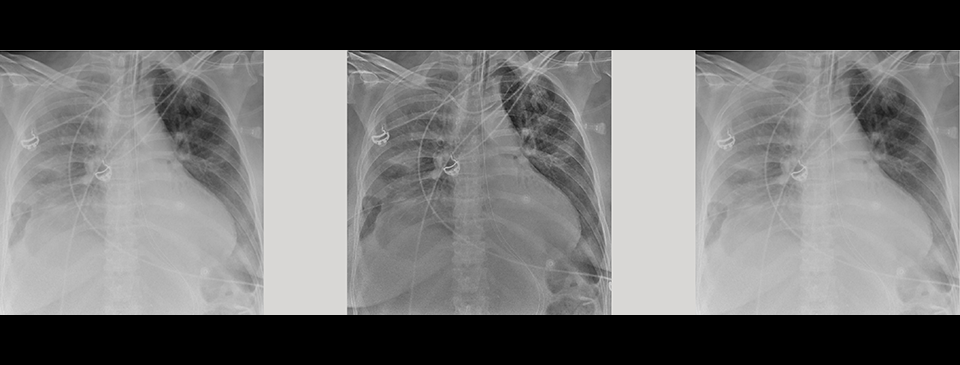

The software (Advanced Edge Enhancement) has three different image processing algorithms (Small structure, Bone and Catheter)

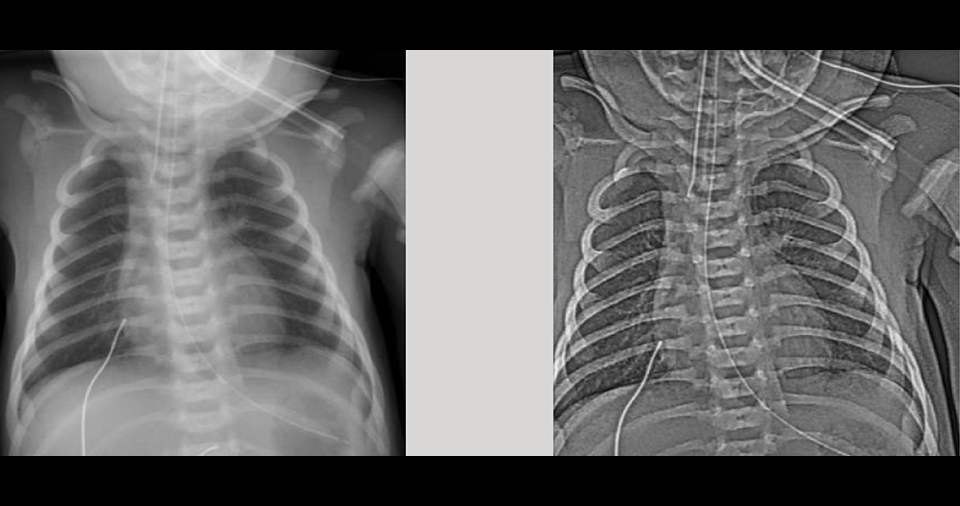

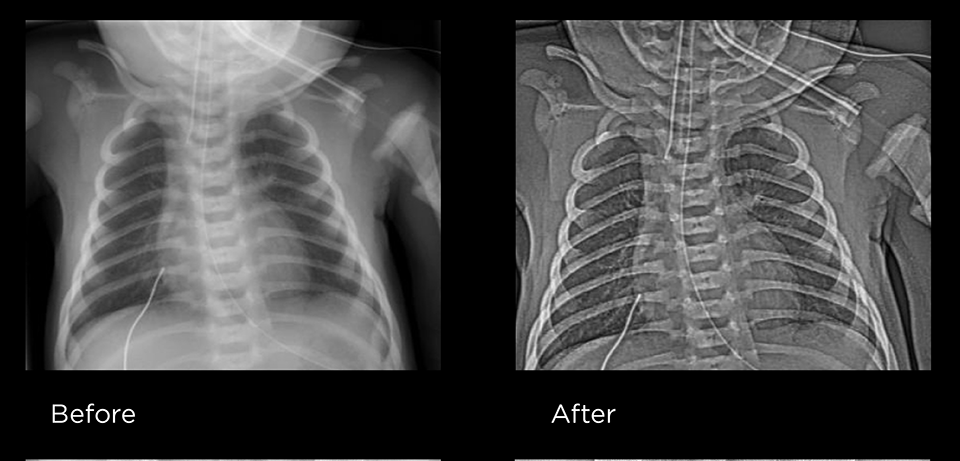

Examples of a pediatric lung original and with (Advanced Edge Enhancement)

Imaging trial supported and done with courtesy of Mediel AB, Mölndal, Sweden distributer of Canon DR technology since 2001.

For further information about the Canon Medical Imaging Group and details of local distributors please visit: www.canon-europe.com/medical
