Fully automatic non-contact Tonometer

FULLY AUTOMATIC NON CONTACT TONOMETER

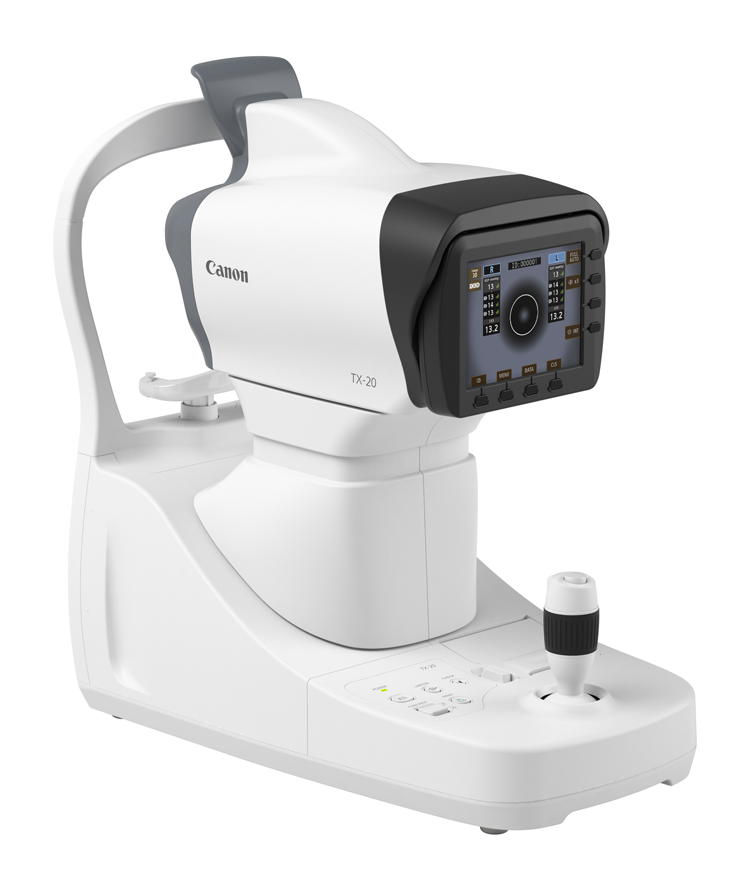

The Canon TX-20 Full Auto Tonometer measures the Intraocular Pressure (IOP) with an extremely soft air puff. It has an advanced intelligent 3D fully automated operation that makes operating the instrument extremely simple; just press the button.

With a simple push of the button, an examination will be conducted fully automatically on both eyes – from alignment to printing.

ADVANCED INTELLIGENT 3D ALIGNMENT

Just align roughly align on the pupil and the automatic operation system takes over and completes a complete examination

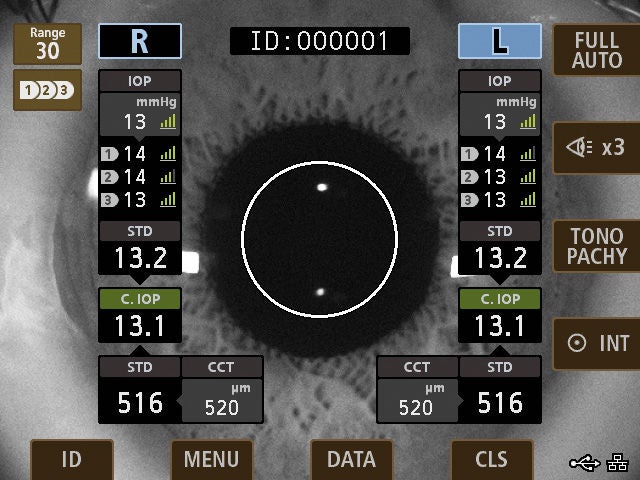

RELIABLE RESULTS

The TX-20 has a sophisticated measurement system and provides reliable result extremely fast

MULTIFUNCTIONAL JOYSTICK

Powered for extremely comfortable operation, All main functions are centralized in the joystick, allowing for the instrument to be operated by one hand.

ENHANCED PATIENT COMFORT

The instrument’s soft air puff and short examination time contribute to enhanced patient comfort.

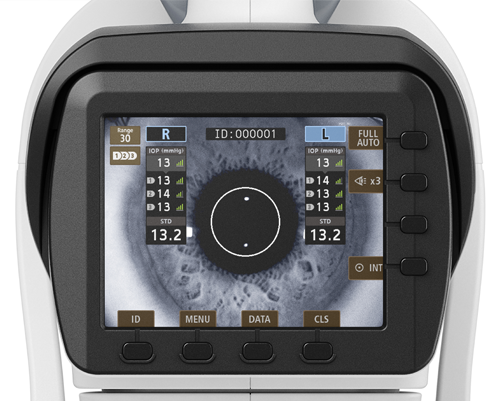

MULTIFUNCTIONAL SWITCHES

Placed around the screen with a simple and logical function indication.

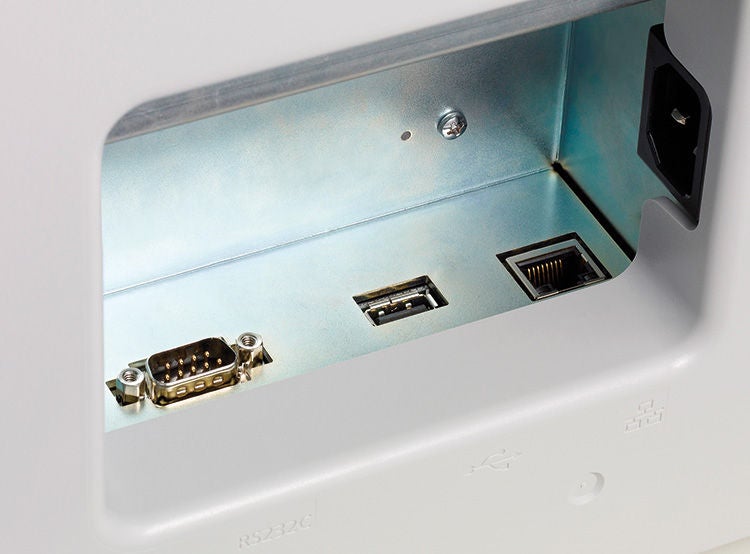

EXTENDED CONNECTIVITY

Input patient info by keyboard/barcode reader. LAN and RS-232C interfaces for easy connection to networks.

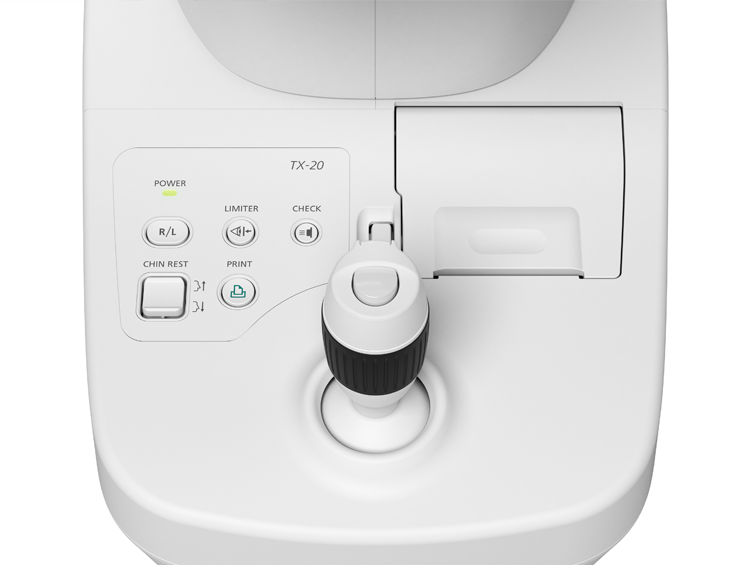

FAST BUILT-IN PRINTER

Printer with easy drop-in paper loading and auto cutter. Comprehensive print-out with all relevant data

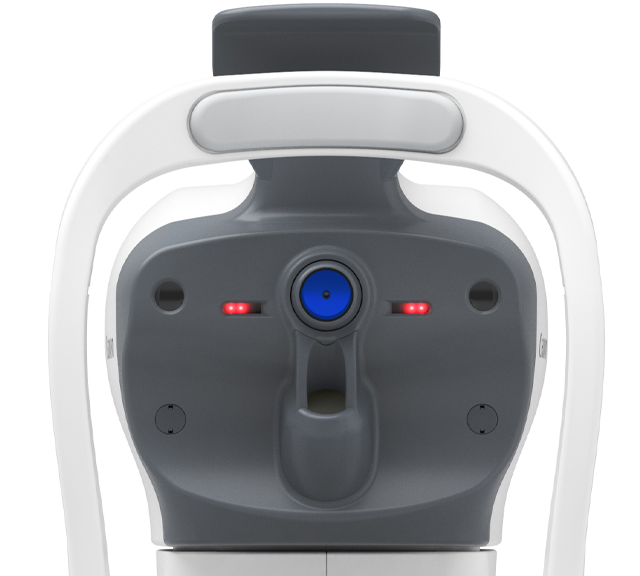

EXTERNAL FIXATION

Besides the internal fixation light, the instrument is equipped with 2 additional external fixation lights. Esssential for patients with a central vision defect.

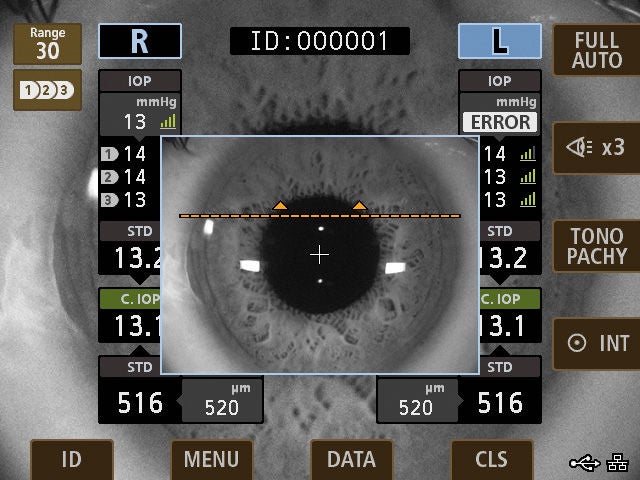

WARNING IMAGES

When there is a measurement error, a snapshot of the examinee’s eye taken just before the measurement is displayed to indicate the possible cause of the error: obstruction by an eyelid or eyelashes.


LIMITER FUNCTION

A safety feature that prevents that the optical head makes physical contact with the patient’s eye.
