A multi-purpose C-arm solution,
optimized for ERCP procedures

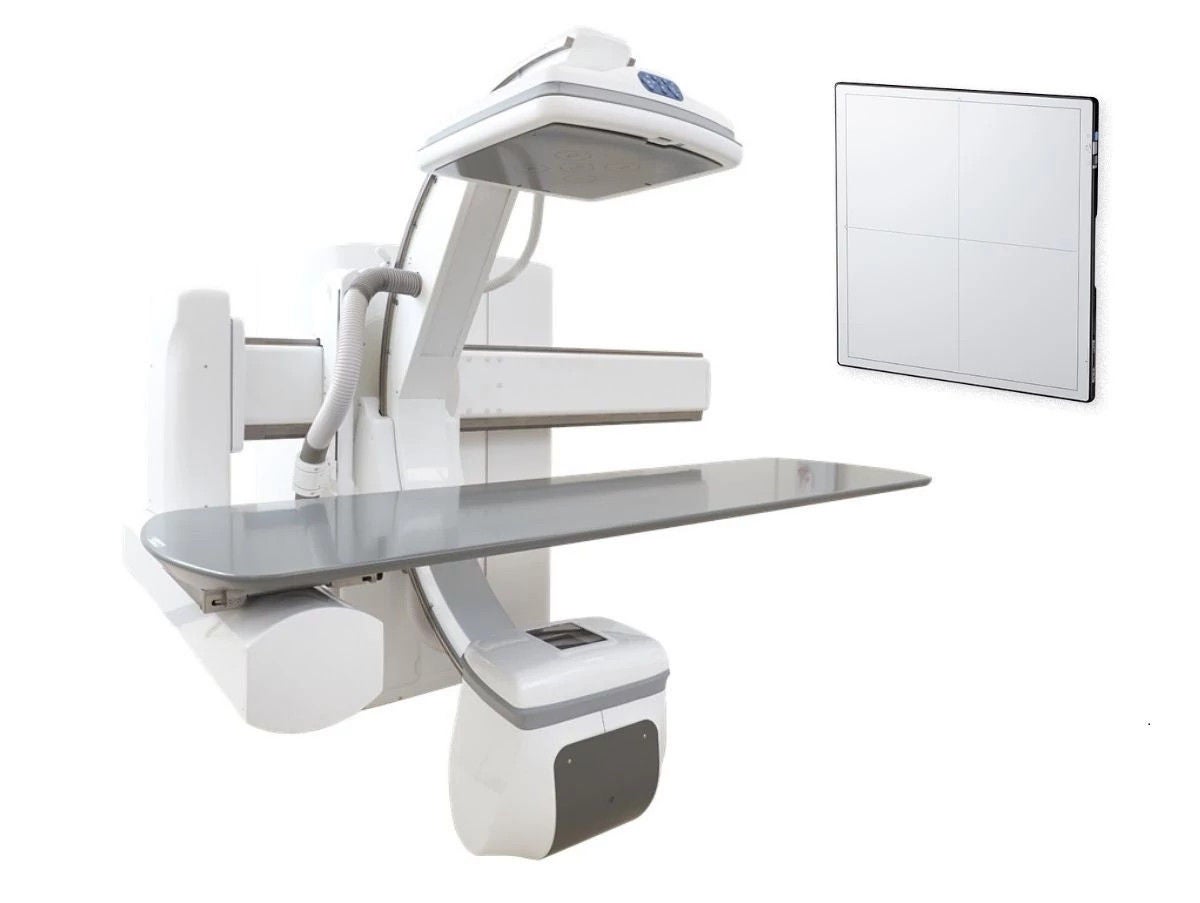

Celex, Optimized for ERCP Procedures

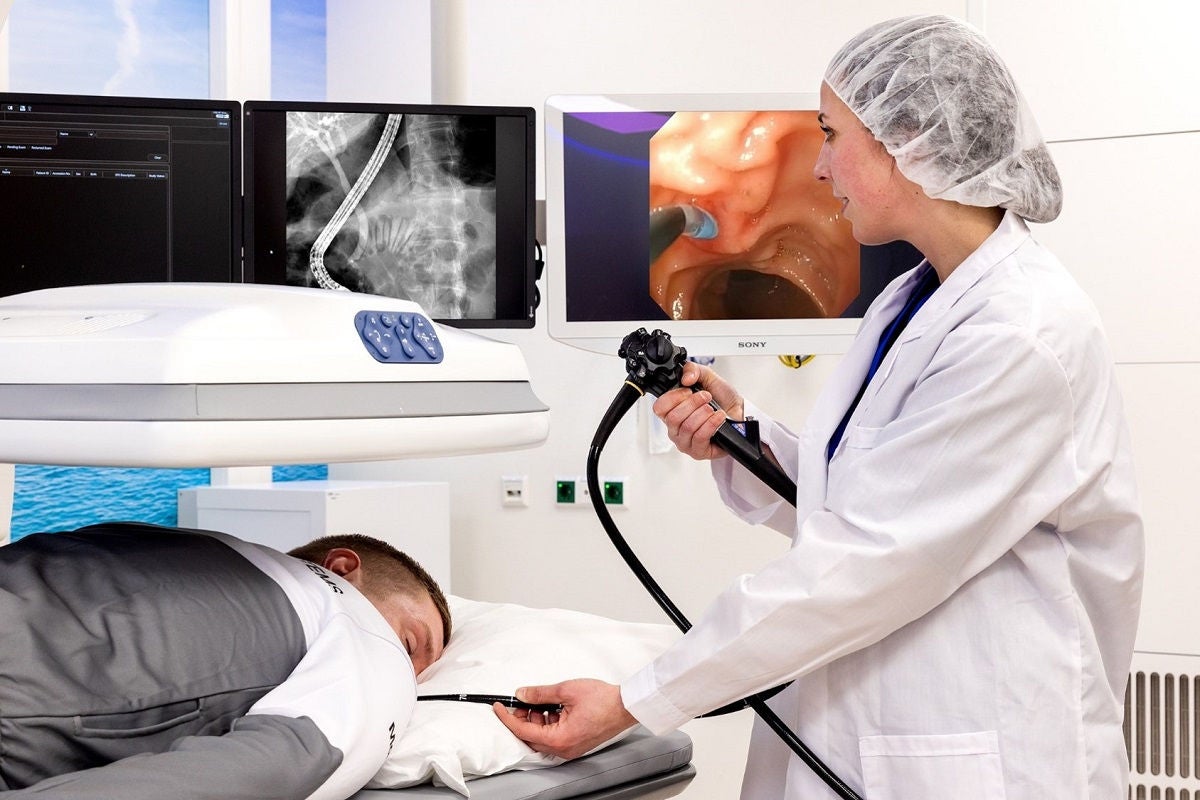

Every ERCP procedure presents a unique set of challenges: complex anatomical variations, demanding cannulation techniques, the ever-present risk of complications, and concerns about radiation exposure. We understand these hurdles and believe that diagnostic and imaging equipment handling should never impede examination outcomes.
That's why we've created the dedicated ERCP configuration for the Celex system; an innovative solution thoughtfully designed to empower gastroenterologists, endoscopy nurses, technicians, and anesthesiologists. Equipped with advanced imaging technology, optimized radiation management, integrated workflow improvement tools, and optimized space availability, the Celex ERCP configuration enables to navigate each procedure’s diagnostics complexities confidently and efficiently, allowing you to fully focus on the patient rather than the imaging equipment.
At every step, our goal is simple: to support your focus on what matters most – your patient and the successful execution of the ERCP procedure. Discover how Celex can transform your ERCP procedures, enhancing precision, safety, and clinical outcomes.
Robust 300 kg table load capacity
Celex’s table boasts an industry-leading load capacity of 300 kg, accommodating patients of all sizes with ease. This eliminates weight restrictions, ensuring every patient receives the same level of comfort and safety during their procedure.
Spacious 70 cm table width
Our expansive 70 cm table width is the largest among ERCP-dedicated multifunctional systems. This ample space ensures a secure environment for restless patients, enhancing stability and safety for both patients and operators. With Celex, patient comfort is never compromised.

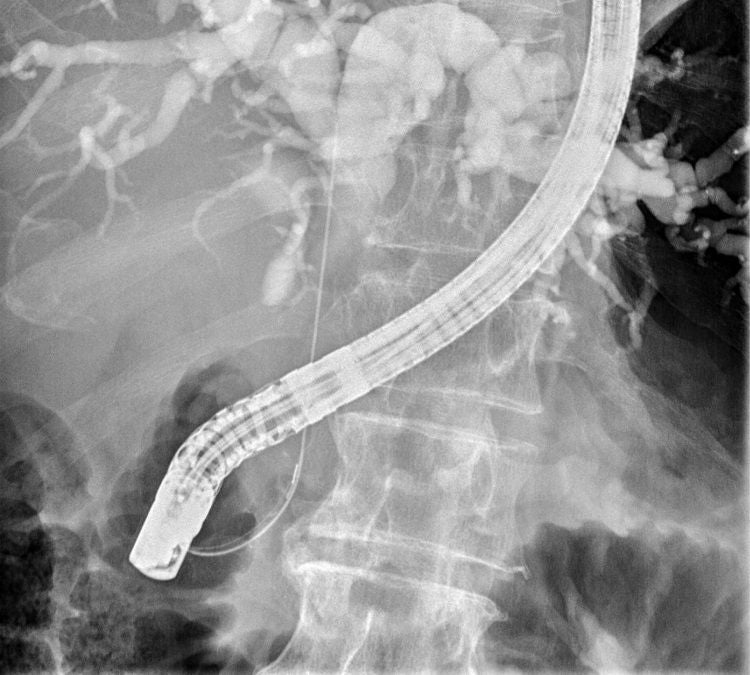

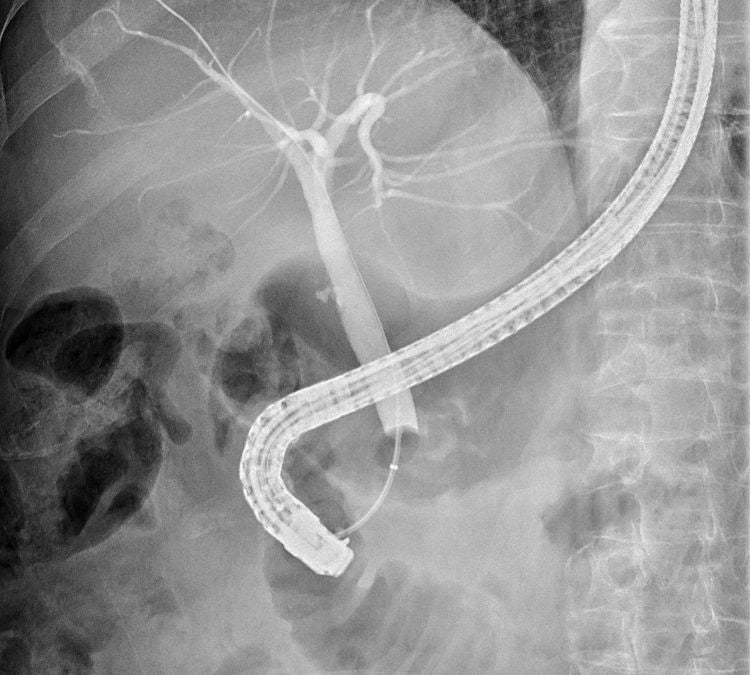

Large field of view
Equipped with a large square detector, the Celex captures the entire target region without the need for portrait or landscape rotations. This saves time and enhances examination efficiency, ensuring continuous visualization of the scope and accurate diagnostic imaging.

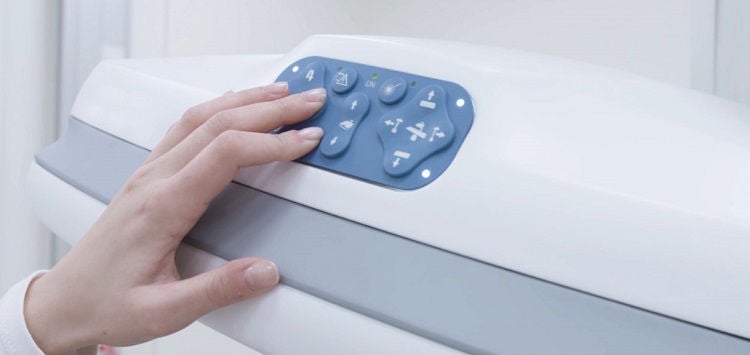

Innovative smart panel on detector housing
With smart panel control buttons on the detector housing, doctors and operators can easily control all system positioning movements at the touch of a button. These conveniently accessible panels eliminate the need for additional external control units, streamlining operations and enhancing procedural efficiency.
Left-sided suspension for easy anesthesia access
The Celex’s innovative left-sided suspension is tailored for ERCP examinations, where the patient’s head is positioned to the right. This design provides unobstructed access for anesthesia staff, ensuring the safety and comfort of the patient throughout the procedure.
Multi-Purpose C-Arm System to Improve Patient Outcomes
Detachable table option
The Celex's versatility ensures it performs exceptionally well across various examinations, making it ideal for hospitals where rooms are shared among different departments. Whether it’s cystography, arthrography, or endoscopic retrograde cholangiopancreatography (ERCP), the system’s design ensures maximum efficiency and adaptability to meet diagnostic needs.

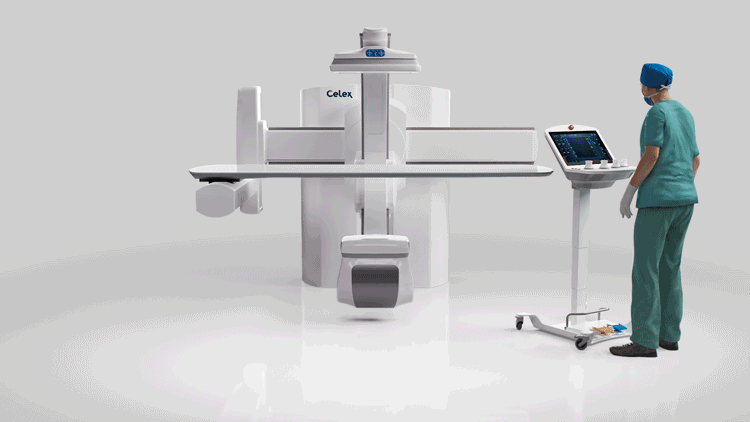

One standout feature is the detachable table, which allows users to easily remove and park the tabletop on a trolley with just a few simple steps. This quick and seamless process enhances the room's flexibility and functionality, freeing up space for patients in wheelchairs or stretchers and making the system adaptable to a wide range of procedures.
Depending on the clinical requirements – which could include the need to perform ERCP examinations – or examination room constraints, the Celex is available in two versions with either a left-side or a right-side suspended table, which can hold 300 kg.
Accessing the patient table is easy due to the low access height of only 50 cm (AP) above the floor, while the unique design concept offers best-in-class SID range of 100–150 cm.
Functionality by design
The Celex offers an extensive range of DR imaging capabilities. It combines state-of-the-art imaging with unique positioning flexibility and represents a true multipurpose solution that delivers optimum capacity utilization.
Seamless workflow user interface
The Celex user interface allows intuitive control of the system's movements and exposure parameters. Simple, self-explanatory icons on the large touchscreen make the system operation efficient, yet easy to master. Depending on the user’s preferences, customizable buttons can be selected to ensure smooth operation tailored to the department’s needs.

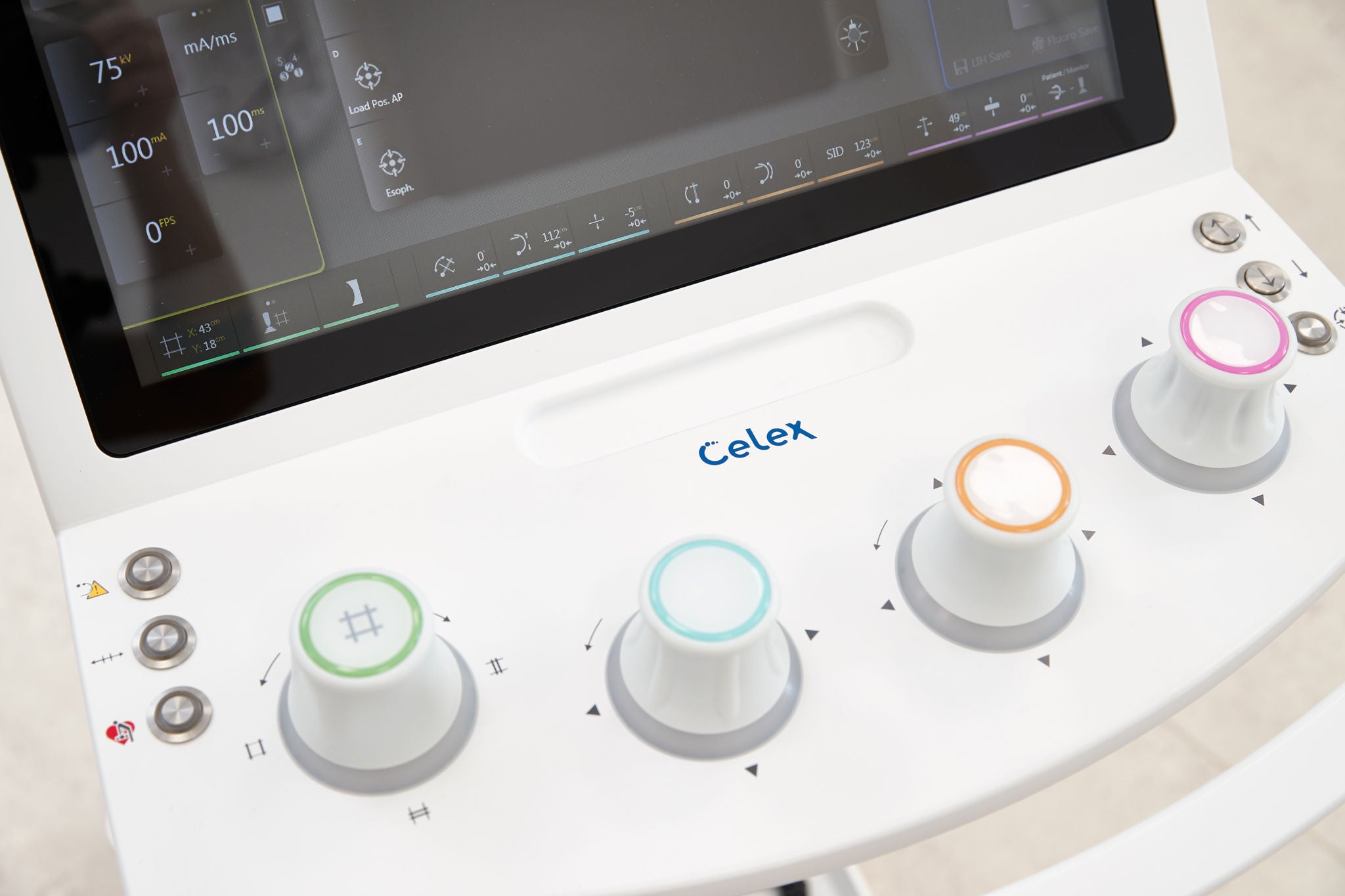

Four joysticks allow direct access to key functions such as system positioning, setting and adjusting image parameters, and performing specialized movements. The ergonomic 3-axis joysticks are marked in different colors, making them easier to distinguish visually. Different shapes enable the user to separate joysticks by tactile sense. The color on top of the joystick presents the respective colors of the movement controls on the intuitive user interface.
Built-in inTouch technology
Built-in sensors in all joysticks ensure that they are only active when you want them to be. The inTouch technology senses the touch of a finger at the top of the joystick, making this safety feature seamless, yet effective.
Convenient. Mobile. Ergonomic.
The inControl provides a convenient way of positioning and controlling the system from within the room. The ergonomic handle and lockable wheels ensure that moving it from a bedside position to a standing examination requires no effort at all. Motorized movements mean that the height can be effortlessly and seamlessly adjusted to the individual who is using it, ensuring that an ergonomic work environment is maintained.
Radiation dose
The Celex system has been designed with both patient and user safety at the forefront, particularly for demanding procedures like ERCP, which require superior diagnostic precision. It delivers high-quality imaging that aids operators in achieving successful outcomes by providing excellent diagnostics while automatically maintaining a strong focus on minimising radiation exposure.
The carbon fiber table is engineered to reduce X-ray absorption, maximising radiation dose reduction without compromising image quality. Additionally, Celex is equipped with advanced features such as noise reduction and enhanced edge definition, further refining image clarity while minimizing unnecessary exposure. For procedures outside of the ERCP room, Celex offers additional radiation-reducing capabilities.

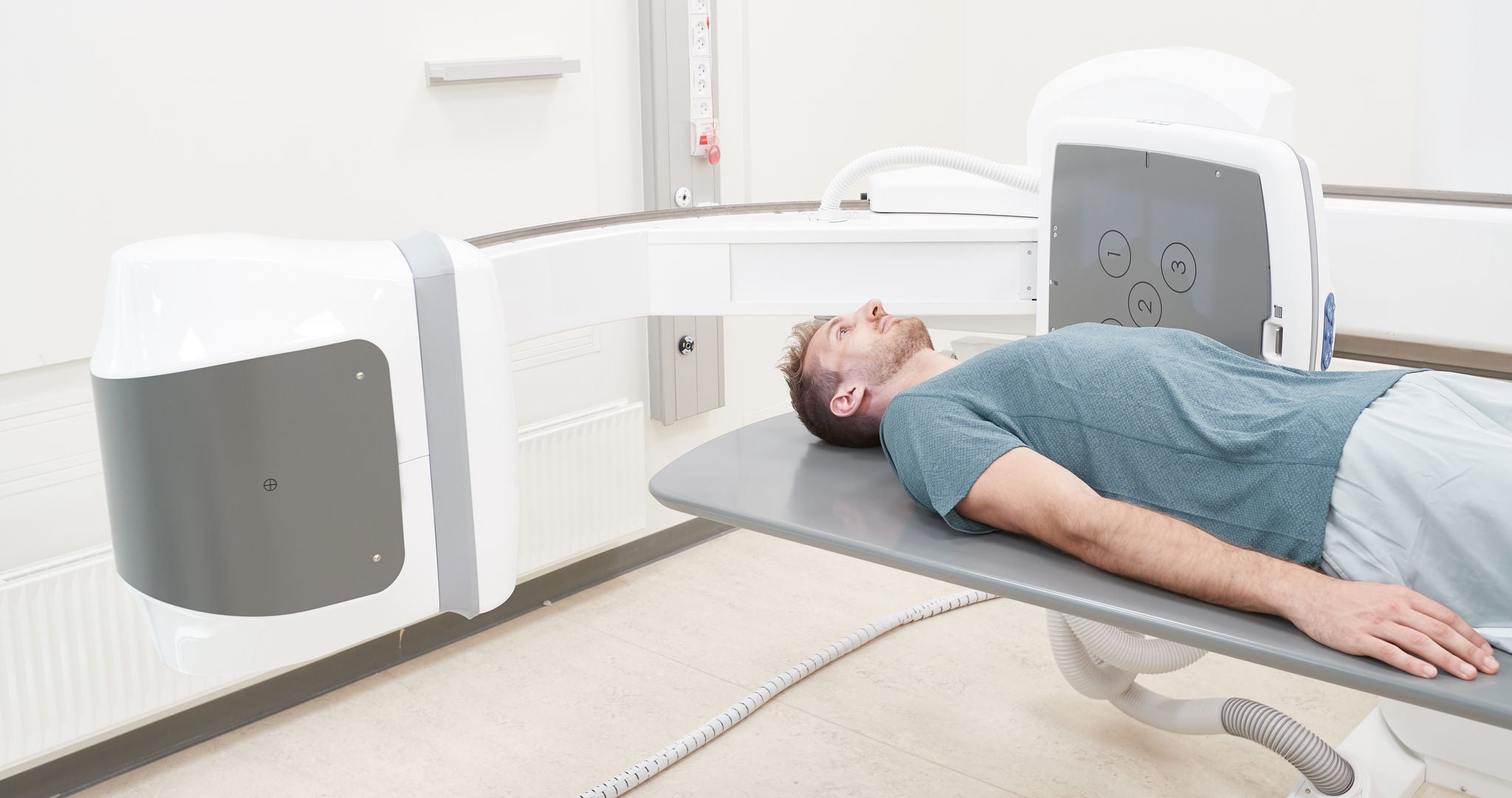

For instance, the table can be easily removed from the C-arm to maintain a clear space between the tube and detector during swallow or standing exams, further reducing the dose. Moreover, the system allows for quick removal of the grid, making it especially suited for pediatric patients where minimizing radiation is critical.
This combination of safety, precision, and flexibility makes Celex a versatile and trusted choice for a wide range of imaging needs, while putting patient and operator safety at the forefront.
